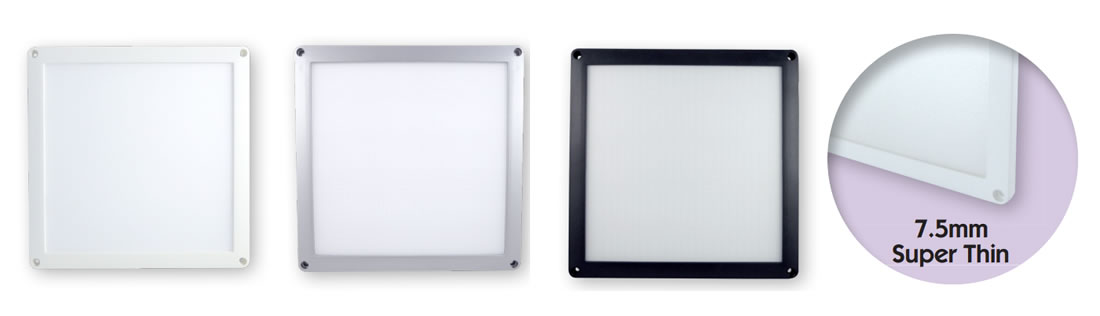

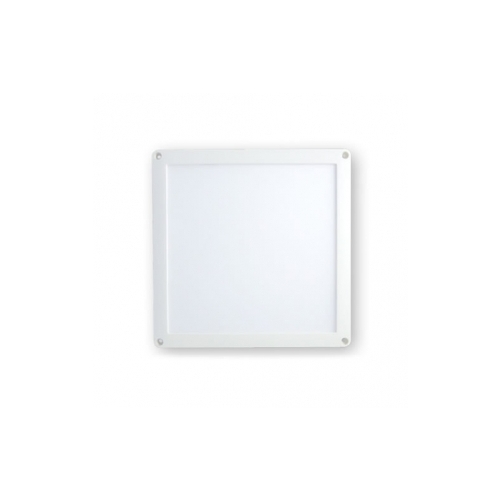

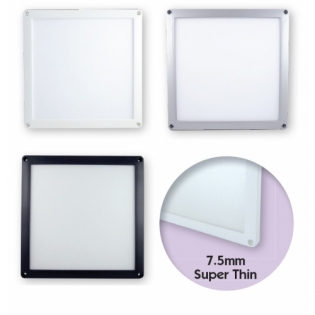

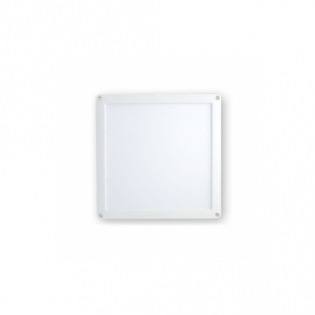

J6203 Series

7W LED Flat Panel Lighting
DETAIL
Part Number
J6203-D1W6000K Cool White Color, 700 Lumens, White Frame
J6203-D1S6000K Cool White Color, 700 Lumens, Matt Silver Frame
J6203-D1B6000K Cool White Color, 700 Lumens, Black Frame
J6203-D2W4000K Warm White Color, 600 Lumens, White Frame
J6203-D2S4000K Warm White Color, 600 Lumens, Matt Silver Frame
J6203-D2B4000K Warm White Color, 600 Lumens, Black Frame
  • Super Thin Design
  • Smooth Light Dispersion
  • Excellent Heat Sink
  • Surface Mount Design
  • Polycarbonate Frosted Lens
  • Aluminum Sheet Base and Bracket
  • 36 LEDS
  • 2 Connector Wire
  • Amp Draw
    510ma 12 VDC / 270ma 24 VDC
  • Dimensions150 X150 mm
  • Depth7.5 mm
